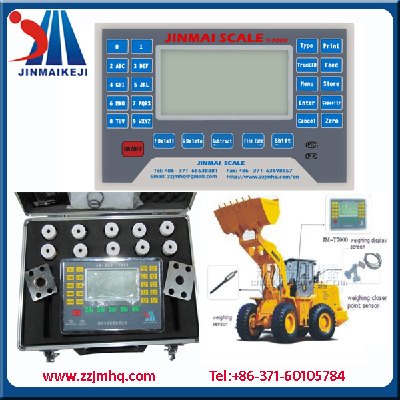

bucket loader scale system

can be used for multiple weighing applications. Compatible with most wheel loader, skid steer or telehandler. with Germany HBM LOAD CELL

• Easy to use  touch screen display
• Large storage in memory
• Load on the go, no stopping the machine or bucket
• ( Increased loading efficiency by never stopping the machine to weigh a bucket ) ,
• Data collection through USB memory
• Target loads for automatic load calculation
• Optional Printing available
• Automatic speed compensated dynamic weighing

Specifications:

1)Model:JM-T7000

2)Components:Oil pressure sensor, temperature sensor, position sensor, connecting components and weighing indicator

3)Accuracy:+/-0.5%~2%

4) Division:10/20/50/100kg

5)Min weighing:200kg

6)Power:12+/-20%VDC,100mA~500mA

7)Sensor Connecting Method:using 4 line and long wire automatic compensation

8)Working Tempeture:-50°C~75°C

9)Controlled by mircoprocessor, highly inteligent, small size and beautiful appearance

10)Doulbe oil-circuit detection with accurate data and high accuracy

11)240*128mm large screen LCD indicator

12)Background light both for LCD display and keyboard
13)Overload arlam

14)Strong data saving capacity and can save data automatically when the scale is shut down
15)Data output: Serial port, USB interface or GPRS (optional )wireless transmission
16)Built-in mini Epson printer
