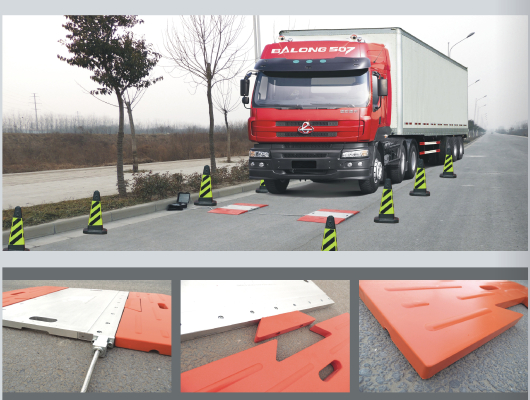

Portable Axle weighing scales have been designed to determine the hit weight on each axle belonging to trucks
The Portable Axle Vehicles are designed for the determination of axle weights of the vehicles. They are easily and practically transported to any location required and then, installed and weighed there under by means of their light and handy as well as functional weighing platforms, chargeable battery weighing terminal. The system consists of two units of weighing platforms and one weighing terminal containing a printer.
They make weighing on static basis when the vehicles bring their axles onto the weighing platform and stop therein; and keep the weighing values in their memories up to ten axles and general total may be calculated. The axle weight values may be followed up on their screen and results be documented through the printer. The slip contains the date hour, order no., number of axles, separate weights of every axle and furthermore, general total along with them.
Function :
7 inch touch color screen display, can operate is by mouse or touch method.
With kinds of weighing system.
Special statistic analyze software, easy to record, statistics and checking.
To operate directly by PC through the connection between PC and indicator. And also with the function of
automatic realize through video and Truck ID (Optional)
MODEL | PORTABLE AXLE WEIGHING SYSTEM |
Division | 5\10\20kg |
Max. Capacity | 30000kg(Single Axle) |
Min. Capacity | 20e(e division) |
Max. Safe Load | 150%Fs |
Operating Temperature | -20-90(degree) |
Power | DC12V\AC220V or Vehicle Power |
Ramp | Rubber ramp |
Limited Speed | 20km/h(less than) |
Data Output | RS232\USB |
Video | Support video connection, Truck ID automatic identification system (Optional) |
Axle instrument Model | Buildin inner electronic display setting; solve the problem, which using labels axle type table lead to ambiguous. |
Compensated Temperature Sensors | The sensor with the Compensated Temperature |
Truck ID, Axle weight, Total Weight, type of axle tyre, time and so on. | |
Software | With Four weighing systems, can switch it freely. |
Printer | Using needle type energysaving printers, can permanently kept the print paper. |
