- Size: 1cbm
- Place of Origin: China
- Brand Name: jinmai
- Model Number: JM-MSI
- Weight: 100.000 kg
Product Name:

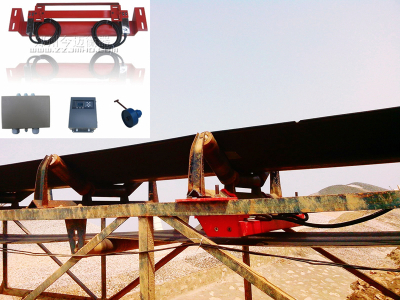

conveyor belt scale
Spec.:
1)Angle of Bench Inclining:Customerized
2)Max Capacity:50000t/h
3)Max Belt Speed:4m/s
4)Belt Width:450-2400mm
Technical Parameters:
1)Accuracy:+/-0.125%~0.5%
2)Driving Voltage:10VDC
3)Output:2mV/V
4)Nonlinearity:0.02%
5)Hysteresis Error:0.02%
6)Repeatability Error:0.01%
7)Max Weighing Sensor Capacity:50, 100, 250, 500, 850, 10000lb
9)Overloading:10000% of rated weighing
10)Working Temperature:-40~85°C

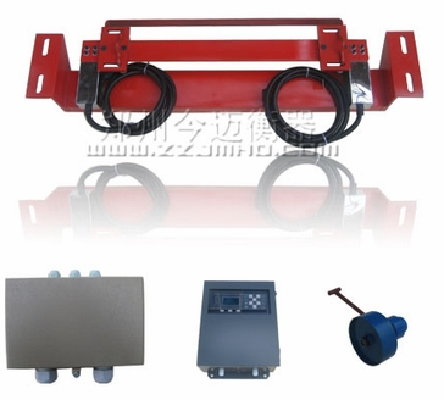

11)Enclosed with scale frame, speed sensor, weighing sensor(steeless temperature-compensation type), relay box and indicator
Advantages:
1)Newly developed JM-MSI model with simple frame, easy stalling, convenient maintaining, long-term stability, good repeatability, etc..
Why you choose us,because we are factory:
1. We can provide the most favorable and competitive products' prices.
2. We have technicists and patent technical, so we can solve all your questions and problems occurred when operating.
3. We can assure timely delivery for you as we have volume inventory.
4. We have 1 year warranty service, we will provide free replacement and maintenance if you have quality problem within one year.
5. We can produce goods according to customer's requirements.
When inquiry,please tell us:
1. the weighign capacity.
2.order qty.
3.Shipping method.
4.Special requests for conveyor belt.
Product Inquiry→ →Quote Offer → →Place order → →Transfer payment → →Product Production → →Goods Delivery
We have Special English servicer to help you ,please contact at 0086-13592556027
