- Size: 45*25*40cm
- Place of Origin: Henan
- Brand Name: jinmai
- Model Number: JM-T7000F
- Weight: 13.000 kg

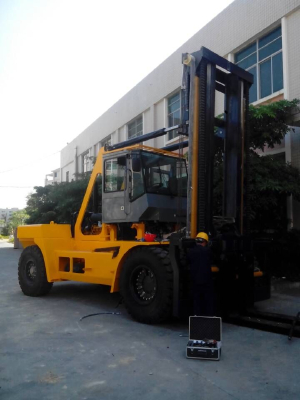

A forklift scale allows the integration of weighing and data management into your operation – without adding any extra steps or route changes. This means you protect your revenue while maximizing efficiency. All JinMai forklift scales are mounted directly on the front of the forklift truck carriage, with a weight indicator in the cab of the truck. This arrangement allows the driver to clearly, easily and safely operate the scale system without interrupting their normal routine.
Our fork lift scales are built with the tough warehouse and material handling environment in mind. The design features two metal plates coupled together with Weigh Bar weight sensors, which means no springs, hydraulics or flexures that can be easily damaged. Furthermore, the system monitors the orientation of the scale and maintains accurate weight readings even if the forklift truck is on unlevel ground, the mast is tilted, or the pallet load is off center.
Features
- Controlled by microcomputer, automatic weighing
- Large storage capacity, can store 10000 weighing data, history data can be checked freely.
- Resistance shake, shock and corrosion, suit for severe environment.
- Special sensors, convenient installation, adapt to various types of engine fork lift trucks.
- Big screen, single weight, accumulative weight and other information display in one screen, easy to operation.
- Special precision guarantee function, ensure the accuracy in various kinds of operating status.
- Work mode and Pause mode can switch freely.
- Users can set overloading auto-alarm accordingly
- Printer can print the current weight data and historical data.
- Variety of weighing function mode switch freely, easy for users to use in variety of handling environment.
- Long service life. Up to 8 years.
- Extensibility
- High Efficiency
- Automation
- High Security
- Large Storage Capacity
- Large Screen
- Printer Function
Technical parameters
Standards | GB/T 7724-2008 | Accuracy Class | OIML Ⅲ |
Max. Capacity | 1-50 Ton, or customized | Mini. Capacity | 100Kg |
Printer Interface | Standard output interface | Data Storage | Forklift number, Driver, name of goods, accumulated weight and time……. |
Load Cell | mechanical strain pressure sensor | Transmission Mode | RS232C/RS485 USB/GPS |
Standby Temperature | -40℃~-70℃ | The Value of sub-degree | 2kg, 5kg, 10kg, 50kg |
Working Temperature | -40℃~-70℃ | Clock | Can display real-time and date |
Relative Humidity | ≤ 85%RH | Static Accuracy | 2‰ F.S. |
Recommended preheating time | ≥10S | Dynamic Accuracy | 10‰ F.S. |
