- Size: 45*25*40cm
- Place of Origin: Henan
- Brand Name: jinmai
- Model Number: JM-T7000
- Weight: 13.000 kg

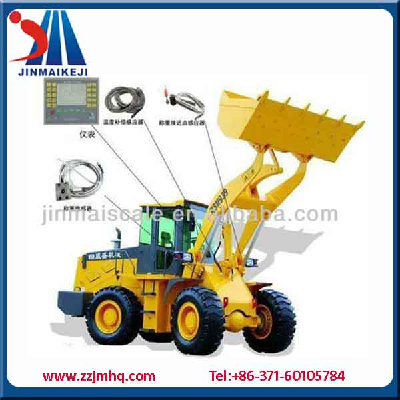

wheel loader weigher
can be used for multiple weighing applications. Compatible with most wheel loader, skid steer or telehandler. with Germany HBM LOAD CELL
Easy to use touch screen display
Large storage in memory
Load on the go, no stopping the machine or bucket
( Increased loading efficiency by never stopping the machine to weigh a bucket ) ,
Data collection through USB memory
Target loads for automatic load calculation
Optional Printing available
Automatic speed compensated dynamic weighing
Specifications:
1)Model:JM-T7000
2)Components:Oil pressure sensor, temperature sensor, position sensor, connecting components and weighing indicator
3)Accuracy: /-0.5%~2%
4) Division:10/20/50/100kg
5)Min weighing:200kg
6)Power:12 /-20%VDC,100mA~500mA
7)Sensor Connecting Method:using 4 line and long wire automatic compensation
8)Working Tempeture:-50°C~75°C
9)Controlled by mircoprocessor, highly inteligent, small size and beautiful appearance
10)Doulbe oil-circuit detection with accurate data and high accuracy
11)240*128mm large screen LCD indicator
12)Background light both for LCD display and keyboard
13)Overload arlam
14)Strong data saving capacity and can save data automatically when the scale is shut down
15)Data output: Serial port, USB interface or GPRS (optional )wireless transmission
16)Built-in mini Epson printer
